Cambo Studio Stand Parts
Studio Stand Bases
Monostand Base
Cambo Cal-0 Base for Mono-1 and Mono-2 Monostands (99131400)
The Cal-0 Base from Cambo is designed to be paired with the Mono-1 and Mono-2 columns to make a complete Monostand studio stand. It is constructed from cast iron and has three lockable swivel castors, making the stand easy to move on a smooth surface.
UCB-0
Cambo UCB Central Locking Base for UST/UBS (99140899)
The UCB Central Locking Base from Cambo is a wheeled, mobile base designed to connect with UST or UBS Cambo columns to form a complete studio stand. The base features a single-pedal locking mechanism which allows the user to render the base both mobile and immobile with a single foot-press.
U-0
UST/UBS Handle Base (99140800)
The U-0 Standard 3-Way Locking Base from Cambo is a wheeled base designed for use with any of the UST or UBS columns. It is equipped with 3 individual locking levers that adjust each foot of the base to make your column perpendicular when on uneven surfaces.
Bases for MONO STANDS
| CAMBO-CODE | Drawing | Description |
|---|---|---|
| 31190114 | 190114 | crank handle |
| 30308073 | 308073 | cover in crank |
| 30310086 | 310086 | screw in handle |
| 30310502 | 310502 | washer m12 |
| 40311018 | 311018 | threaded bar height adjust |
| 30311060 | 311060 | nut for wheel |
| 30311263 | 311263 | wheel for HD base |
| 30311308 | 311308 | cover T-base leg |
| 30310346 | 311346 | wheel T-base |
| 30370053 | 370053 | screw for cross bar monostand |
| 30520092 | 520092 | screw for cross bar monostand |
📊 Spreadsheet Editor
This editor is only visible in the theme editor. Your website visitors will only see the table.
Bases for UST and UBS
| CAMBO-CODE | Drawing | Description |
|---|---|---|
| 30300133 | 300133 | cover in handle |
| 30310086 | 310086 | screw in handle |
| 20310234 | 310234 | holding screw |
| 30310263 | 310263 | wheel for base |
| 30310279 | 310279 | screw for wheel |
| 40310303 | 310303 | threaded bar height adjuster |
| 30310304 | 310304 | foot under bar |
| 31310559 | 310559 | Crank Handle |
| 20310565 | 310565 | foot pedal |
| 20310568 | 310568 | setting pin height |
| 30380066 | 380066 | dust cover |
📊 Spreadsheet Editor
This editor is only visible in the theme editor. Your website visitors will only see the table.
Studio Stand Columns
Mono Stand Columns
Mono-1 (99131411) / Mono-2 (99131412)
Portraits & e-commerce
MBX Stand Columns
MBX-1 (99131701) / MBX-2 (99131702)
Easy to use
UBS Stand Columns
UBS-1 (99140851) / UBS-2 (99140852) / UBS-3 (99140853)
High end production
UST Stand Columns
U-1 (99140801) / U-2 (99140802) / U-3 (99140803)
Classic, heavy duty
Cambo Monostand Column
| CAMBO-CODE | Drawing | Description |
|---|---|---|
| 31190114 | 190114 | crank handle |
| 30311314 | 311314 | locking knob for clamp |
| 30311315 | 311315 | locking knob vertical needs 312015 to be added |
| 42311332 | 311332 | gear axle |
| 20312015 | 312015 | threaded bar for 311315 |
| 30370013 | 370013 | locking bolt for clamp |
| 40370200 | 370200 | camera mount bar needs 311314 to be added |
📊 Spreadsheet Editor
This editor is only visible in the theme editor. Your website visitors will only see the table.
UBS Column
| CAMBO-CODE | Drawing | Description |
|---|---|---|
| 20310696 | 310696 | cross bar UBS |
| 40310697 | 310697 | cover for cross bar |
| 20310721 | 310721 | locking knob assy |
| 30320051 | 320051 | screw for cover |
| 30370123 | 370123 | locking handle |
📊 Spreadsheet Editor
This editor is only visible in the theme editor. Your website visitors will only see the table.
UST Column
| CAMBO-CODE | Drawing | Description |
|---|---|---|
| 20300108 | 300108 | cover |
| 30310005 | 310005 | axle for top wheel |
| 20310028 | 310028 | plastic covers for cross bar |
| 20310031 | 310031 | mounting cross bar |
| 30310032 | 310032 | eyenut m20 |
| 30310035 | 310035 | washer m20 |
| 30310036 | 310036 | nut m20 |
| 30310041 | 310041 | cushion ring on counterweight |
| 20310062 | 310062 | sliding guide |
| 30310205 | 310205 | lock washers for axle |
| 20310258 | 310258 | brake pad |
| 20310260 | 310260 | brake segment |
| 30310264 | 310264 | threaded bar m20 |
| 20310265 | 310265 | guide bushing for brake wedge |
| 20310266 | 310266 | brass brake wedge |
| 30310275 | 310275 | screws to mount plastic covers |
| 20310300 | 310300 | cable assy for 12' stand / 3,6 mtr |
| 20310301 | 310301 | cable assy for 7' stand / 2,1 mtr |
| 20310302 | 310302 | cable assy for 9' stand / 2,7 mtr |
| 30310309 | 310309 | spring for lock handle |
| 20310389 | 310389 | Cable wheel assy |
| 20310408 | 310408 | locking handle |
| 20310619 | 310619 | vertical guide |
| 30310620 | 310620 | spring |
| 30310621 | 310621 | knob for vertical guide |
| 30360134 | 360134 | grip on locking handle |
📊 Spreadsheet Editor
This editor is only visible in the theme editor. Your website visitors will only see the table.
Crossarms
UBA
UST/UBS Ball Bearing Crossarm (99140854)
Cross arm for UBS and UST Studio Stands. Effortless lateral movement on roller bearings. Mounts for camera platforms and accessories on either ends of the arm.
U-4
UST/UBS Gear Driven Crossarm (99150804)
Crossarm with gear-driven lateral movement. Receivers for camera platform/accessories on either end.
U-6
UST/UBS Crossarm Extension (99150806)
The U-6 adds 38 cm (15") length to the crossarm U-4 or UBA. It mounts directly into the arm and accepts any camera platform of the UST/UBS system.
Accessories
U-29
UST/UBS Pan Rotation Camera Platform (99150829)
The U-29 fits directly to the U-4 or UBA Cross Arm and has a 3/8" camera mount on a 90° angled platform with 360° panning.
U-45
UST/UBS Low Position Adapter (99150845)
The U-45 fits directly into the crossarm U-4 or UBA and has a mount to accept any camera platform accessory of the UST/UBS system. Ideal for ground level, low-angle shots.
U-9
UST/UBS Angled Camera Platform (99150809)
The U-9 fits directly into the crossarm U-4 or UBA and has a 3/8" camera mount on a 90 degrees angled platform.

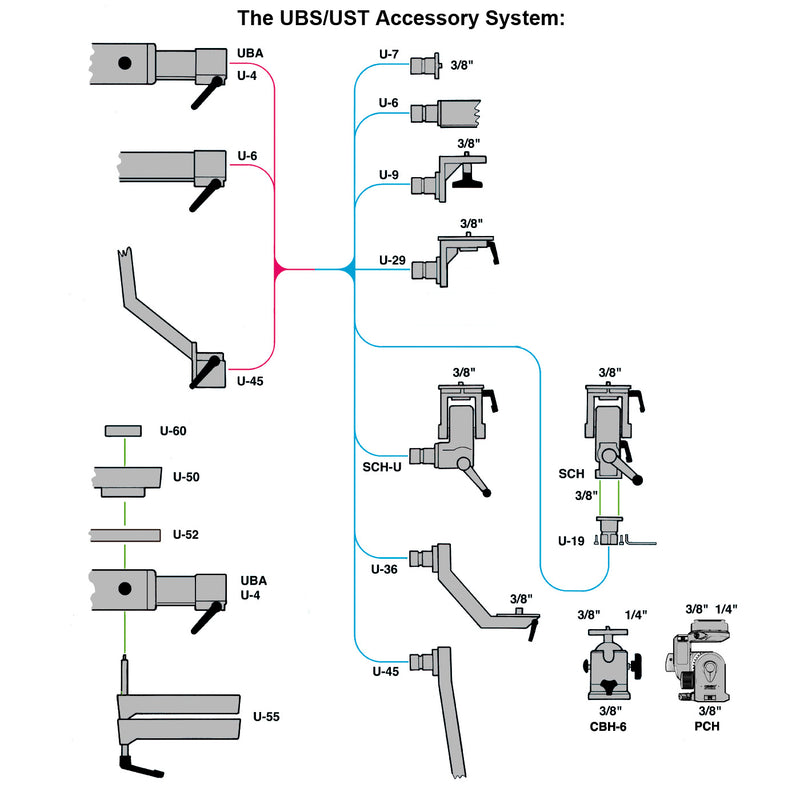

Accessories for UST & UBS Stands
| CAMBO-CODE | Drawing | Description |
|---|---|---|
| 30302042 | 302042 | locking handle for U-29 |
| 29310184 | 310184 | vertical bar for U-5 |
| 29310188 | 310188 | vertical bar for U-55 |
| 20310384 | 310384 | camera knob for U-9 |
| 31380086 | 380086 | spare tray for U-55 |
| 30380088 | 380088 | spare inlay for tray |
