Actus Rear Base Tilt (includes front spacer)

AC-371

Rear Base Tilt for Actus

The Rear Base Tilt for Actus adds an extra base tilt adjustment to your Actus camera's rear standard. This kit is a retrofit for all existing ACTUS B, G, and DB versions.

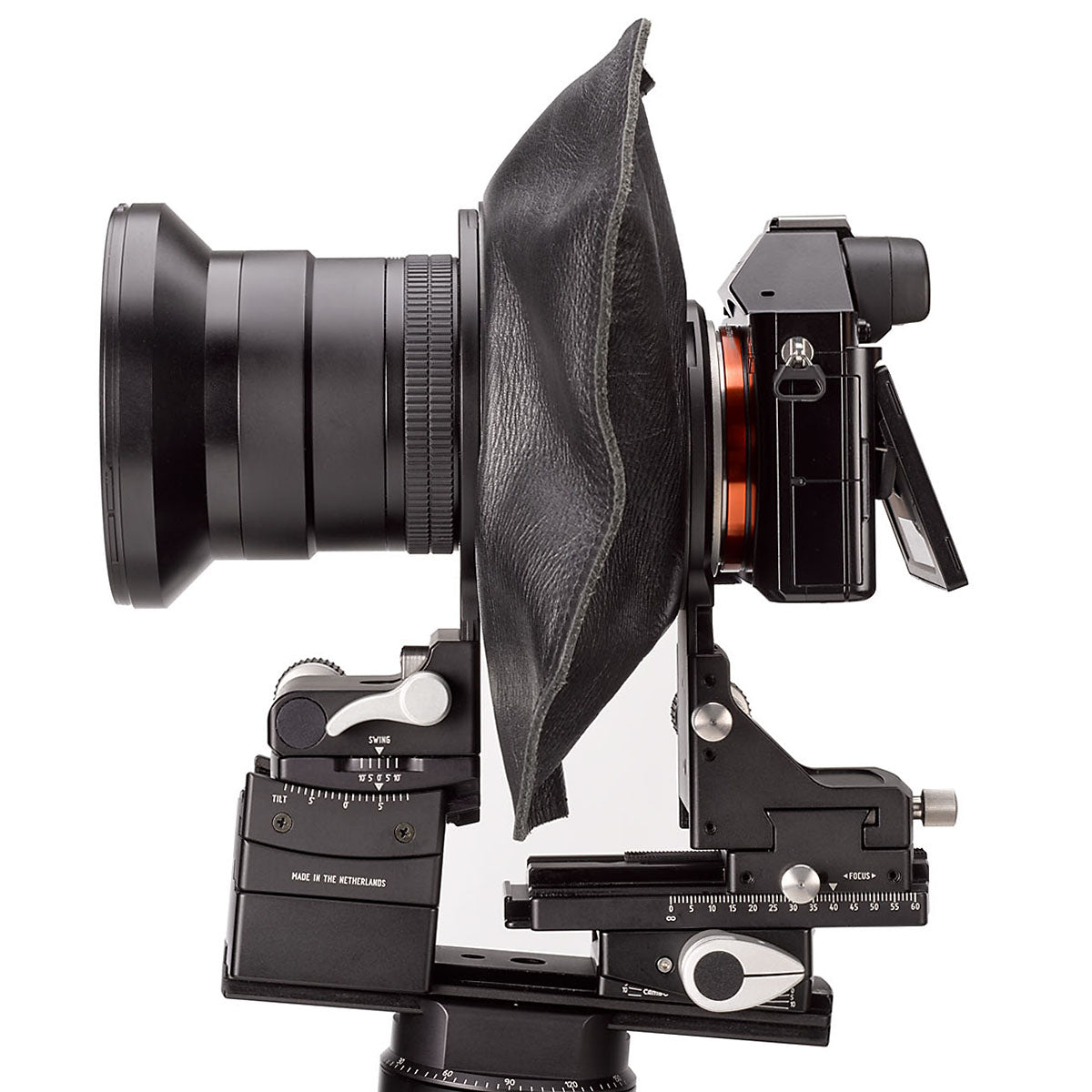

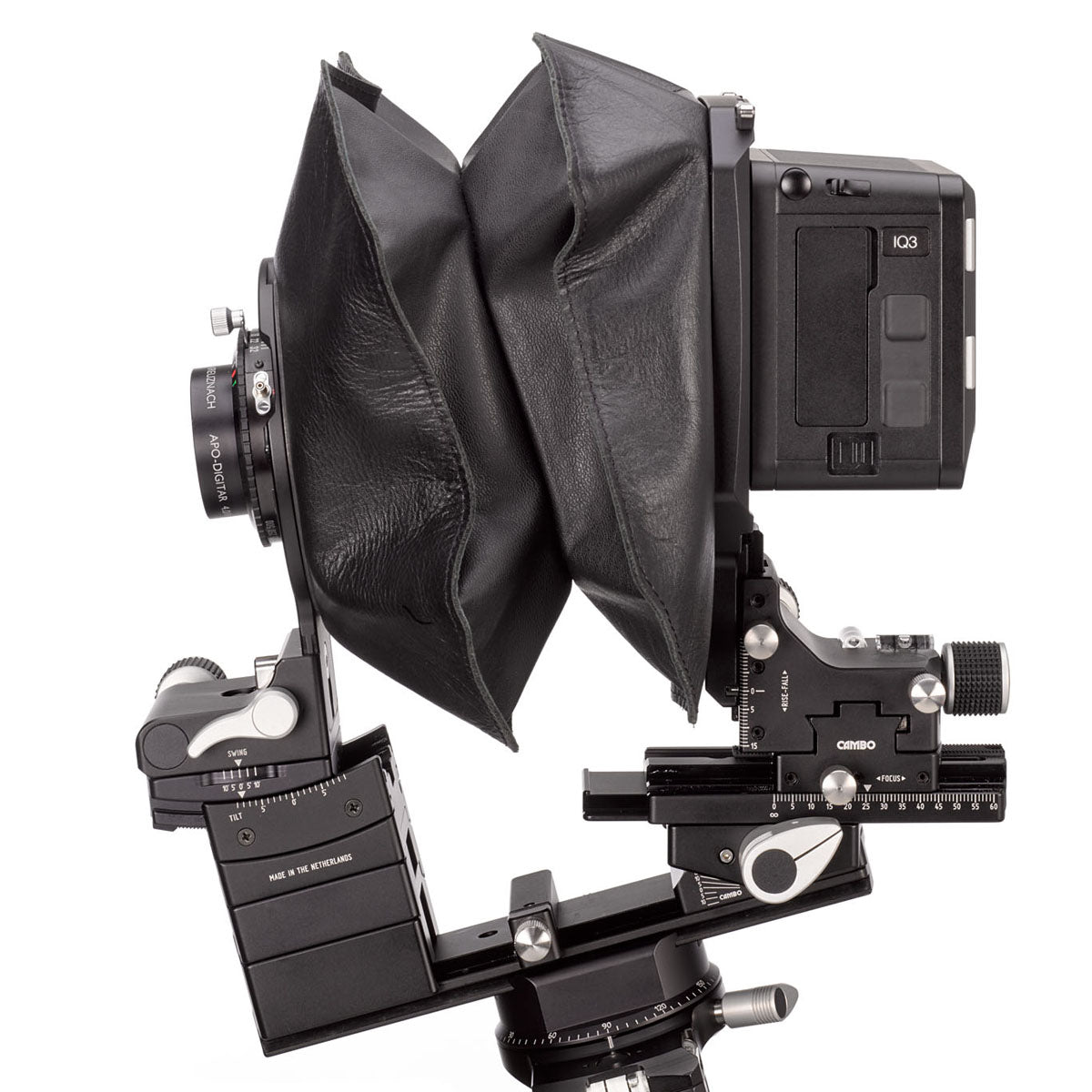

The rear base tilt unit mounts between the rear standard focussing unit and the monorail. It makes an extra layer of sliding focus too, adding 42mm of focus draw to the original configuration.

Incremental settings up to 15 degrees are set and locked with a positive lock.

The Rear Base Tilt gives you more creativity in applying technical camera movements.

Product details

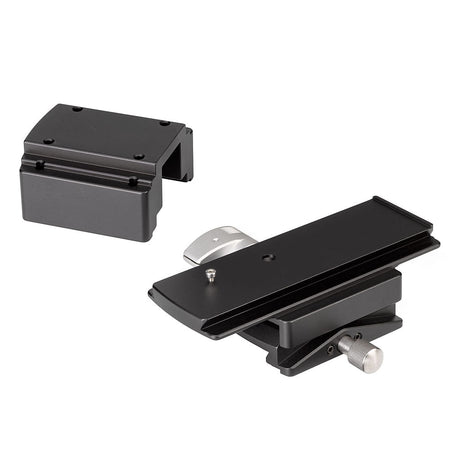

The Rear Base Tilt kit consists of a rear base tilt unit and a dedicated spacer under the front assembly to match the correct height change.

The rear base unit can be set each 5 degrees upto 15 degrees to each side. The lock is applied in a grid pattern, so the standard is locked into position.

Technical details

Manual

• AC-371 instruction manual
