AC-381
Fine Ratio Tilt Gearing

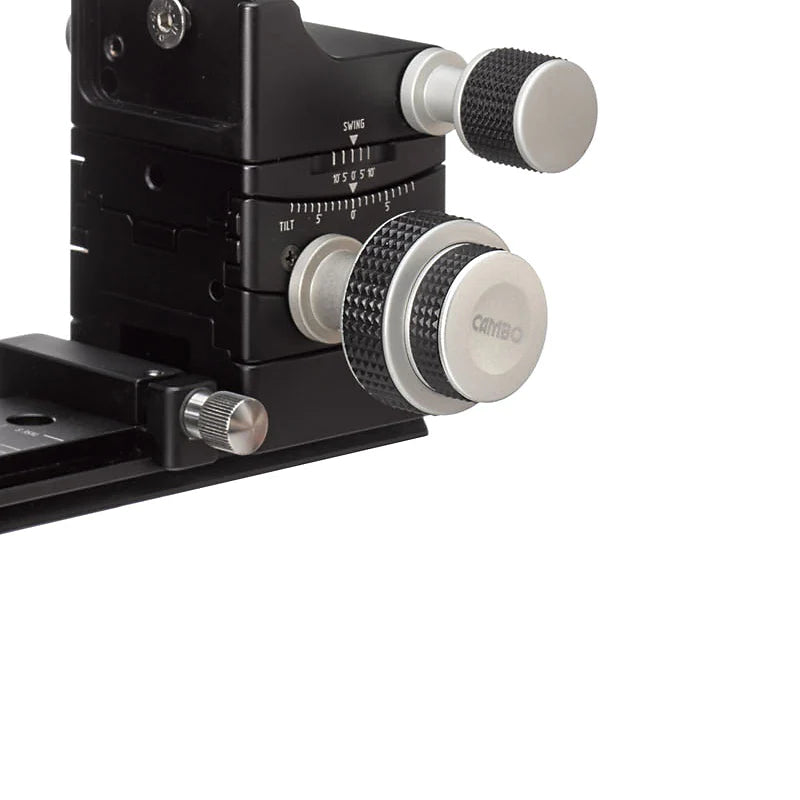

The AC-381 is a replacement tilt assembly for the Actus camera bodies, with the unique ability to drive the tilt movement in normal ratio as well as with a fine ratio of 1:5, allowing very precise selective focussing in all situations. The extra focus layer knob has a larger diameter for optimum feeling of fine selective focus.

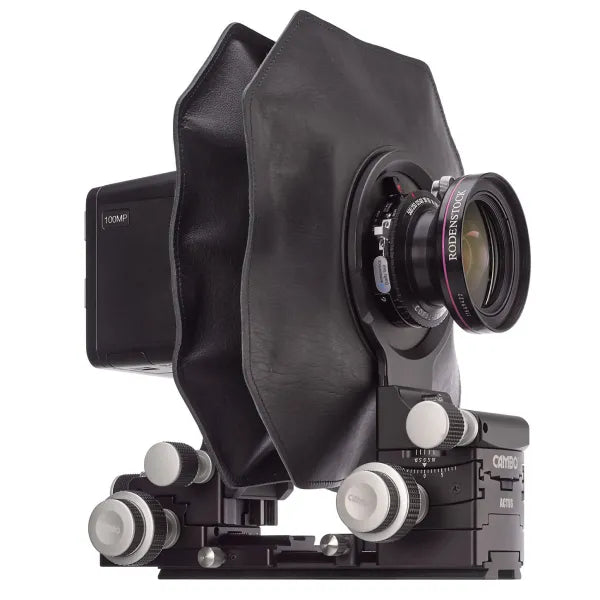

AC-381 is specifically only for the Actus-G and -Actus-DB2 versions, and can be added by a simple replacement routine.
Product Details

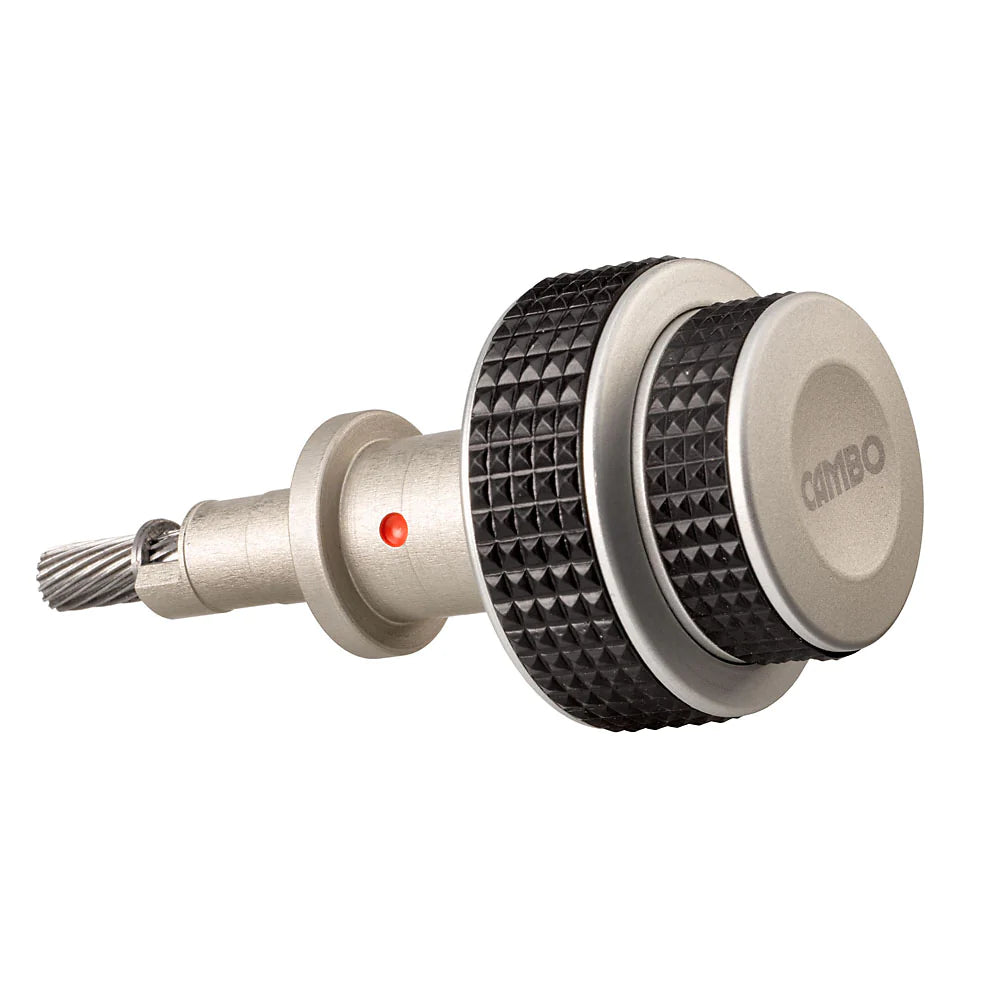

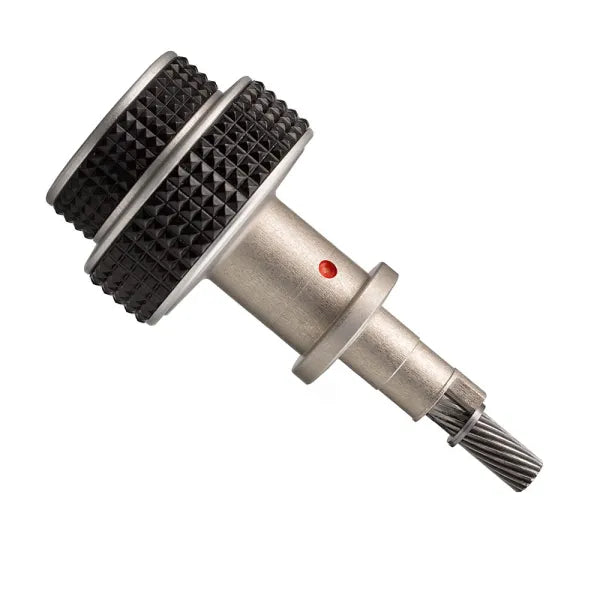

The AC-381 consist of an assembly of the drive gear, direct drive knob and a fine ratio knob.
The AC-381 is a replacement assembly only suitable for the TILT function of all delivered Actus-G and Actus-DB2 versions including Actus-GFX, -XCD, and -DB2.
The exchange procedure is a straight forward operation, guided by a clear manual.
Technical details
| Weight | 26 gram after exchange |
|---|---|
| Width | 10 mm after exchange |
| Direct drive knob diameter | 32 mm |
| Fine ratio gear diameter | 25 mm |
| Packages includes | drive assembly AC-381, 1 hex key, 1 instruction manual. |
| Compatibility | Actus-G versions, Actus-DB2 |
