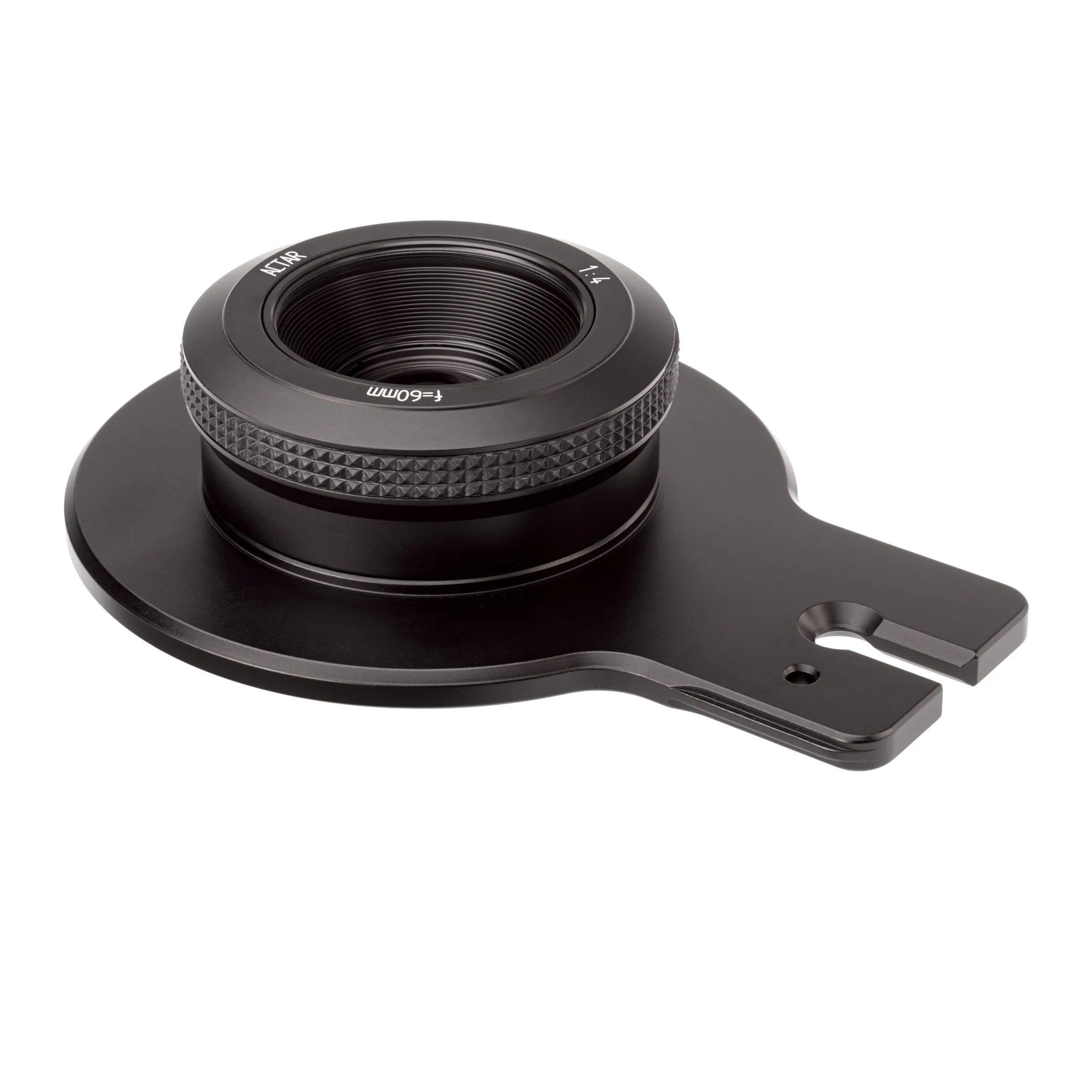

Actar-60
60mm Actar Lens for Actus
The ACTAR-60 is a lens dedicated to the Cambo Actus in combination with a mirrorless camera, mounted to the Actus. This lens is permanently attached to an Actus lens panel and has a focal length of 60mm. This makes it an ideal companion for studio, landscape and architectural photographers. With a light weight and a small size it is easy to carry with you to location shootings.
The ACTAR-60 is a lens with no geometrical distortion. As the image circle is 75mm, there is an optically allowed horizontal shift possible of 15mm each side when using a full frame (24x36) sensor in landscape mode, and 17mm in portrait mode. When using a smaller APS-C sensor the shift possibilities grow to 20mm. Of course vertical shifts have the same possible numbers in reverse order.
The optical design of this lens is a 6 element, of which all lenses are multicoated to achieve the best contrast. The aperture range is from f/4.0 to f/22.
Please note that the aperture is manual and there are no electronic connections available nor needed.
| Focal Length | 60mm |
|---|---|
| Aperture range | f 4,0 - 22 (manual) |
| Lens construction | 6 elements |
| Image circle | 75mm |
| Coating | Multi coating |
| Front filter thread | m40.5 |
| Size LxWxH | 41x98x130mm (including actus mount) |
| Weight | 300 gram |
| Build for | Cambo Actus (non DB) |
| Work in combination with actus (or actus MV) for | Mirrorless Camera body |
| Available since | October 2016 |
