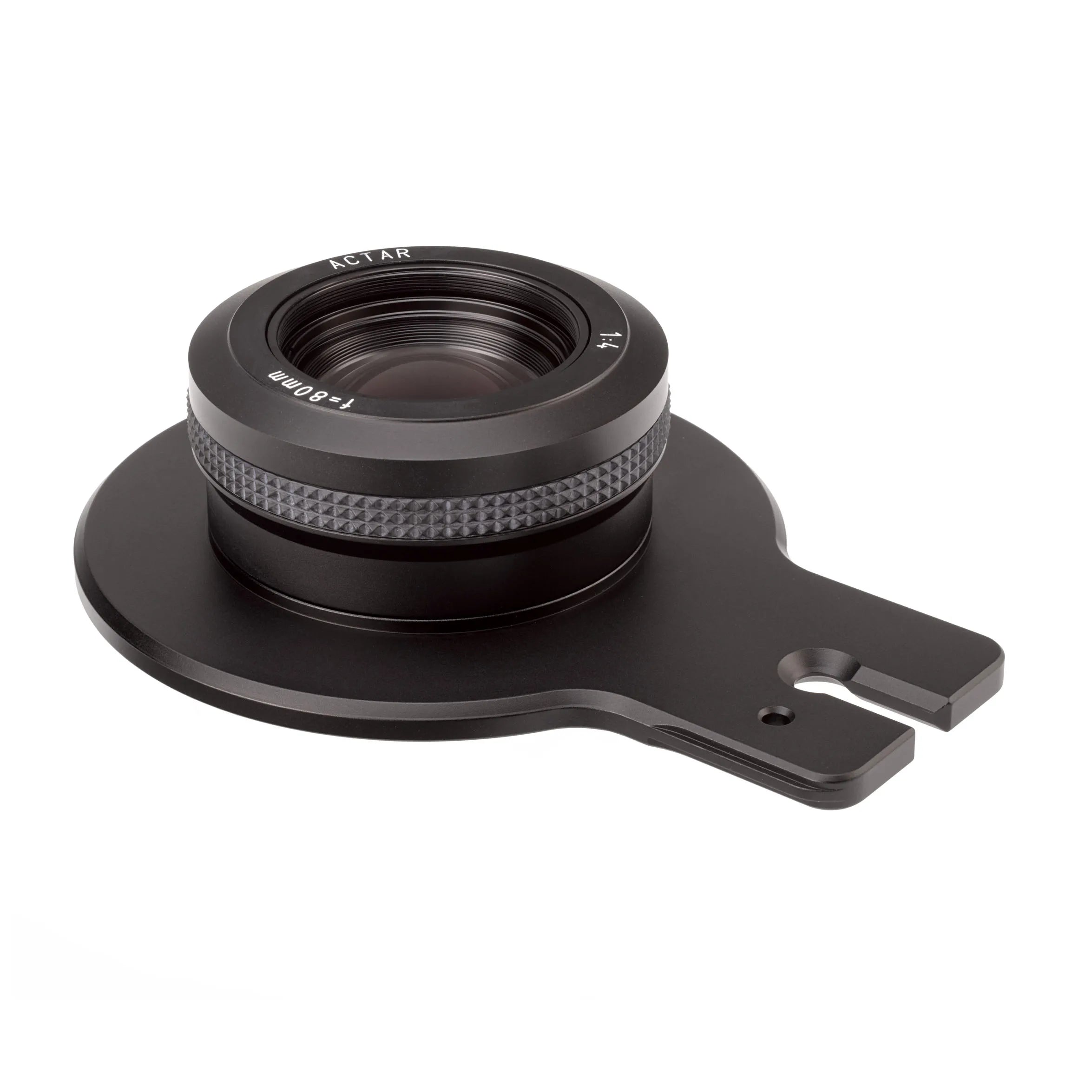

Actar-80
80mm Actar Lens for Actus

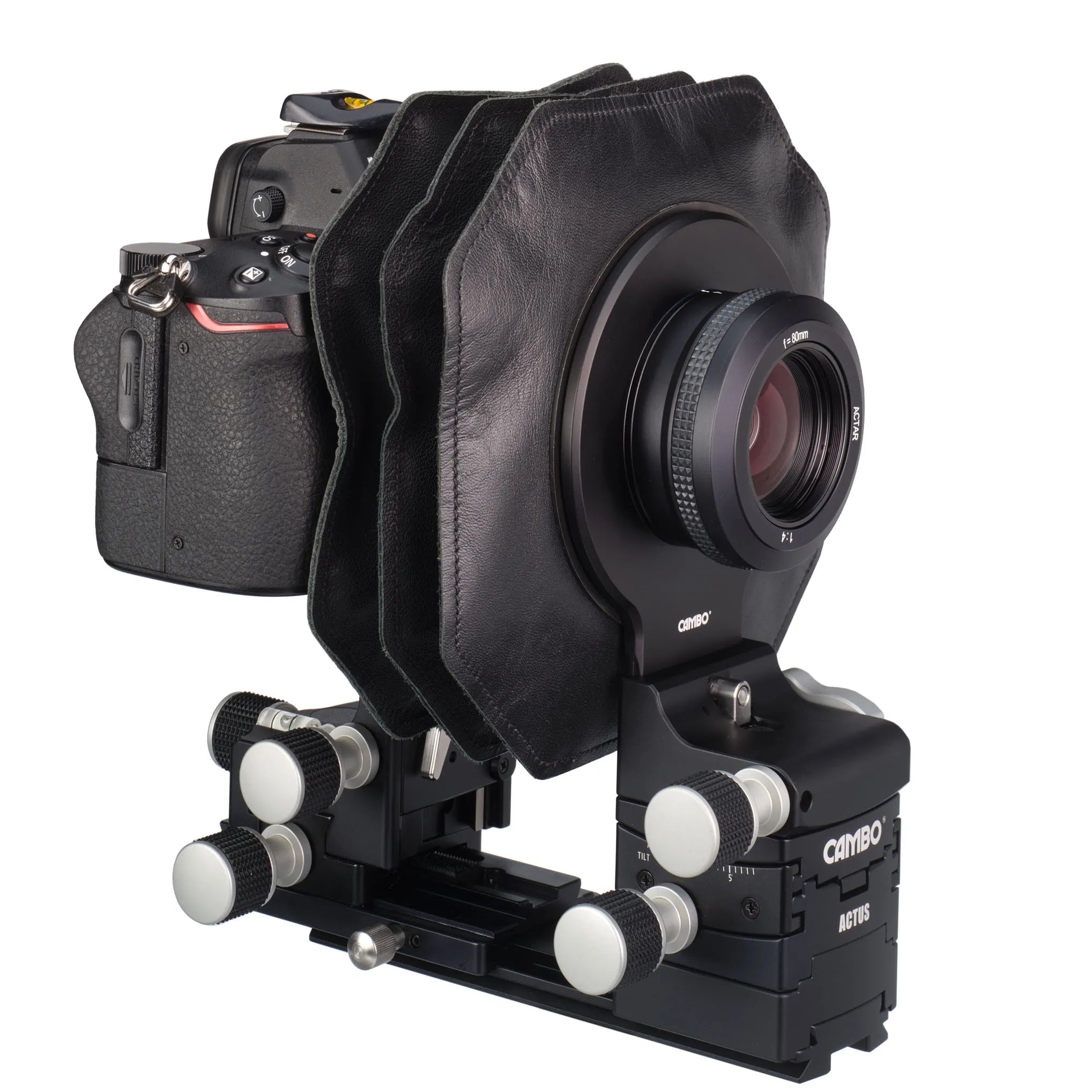

The ACTAR-80 is a lens for use with Cambo Actus or Actus-MV view cameras, combined with any DSLR or mirrorless camera. The lens is permanently attached to an Actus lens panel and has a focal length of 80 mm, which makes it very suitable for studio and landscape photography. Its light weight and small size also encourage to take it on location.
The large image circle of 85 mm allows for horizontal shifts exceeding 20mm to each side when using a full frame (24x36) sensor in either landscape or portrait mode.
The optical design of this lens is a 7 element, of which all lenses are multicoated to achieve the best contrast.
Please note that the aperture is manual and there are no electronic connections available nor needed.
| Focal Length | 80mm |
|---|---|
| Aperture range | f 4,0 - 22 (manual) |
| Lens construction | 7 elements |
| Image circle | 85mm |
| Front filter thread | m40.5 |
| Size LxWxH | 47x98x130mm (including actus mount) |
| Weight | 355 gram |
| Build for | Cambo Actus (non DB) |
| Suitable for all Actus models | Mirrorless Camera body/DSLR/DB with on-sensor shutter |
| Available since | January 2017 |
