Actus-MV View Camera for Digital Backs - Non Rotating

1 available
SKU: 99010938 Barcode: ACMV-DB Kit
$6,384.00

ACMV-DB

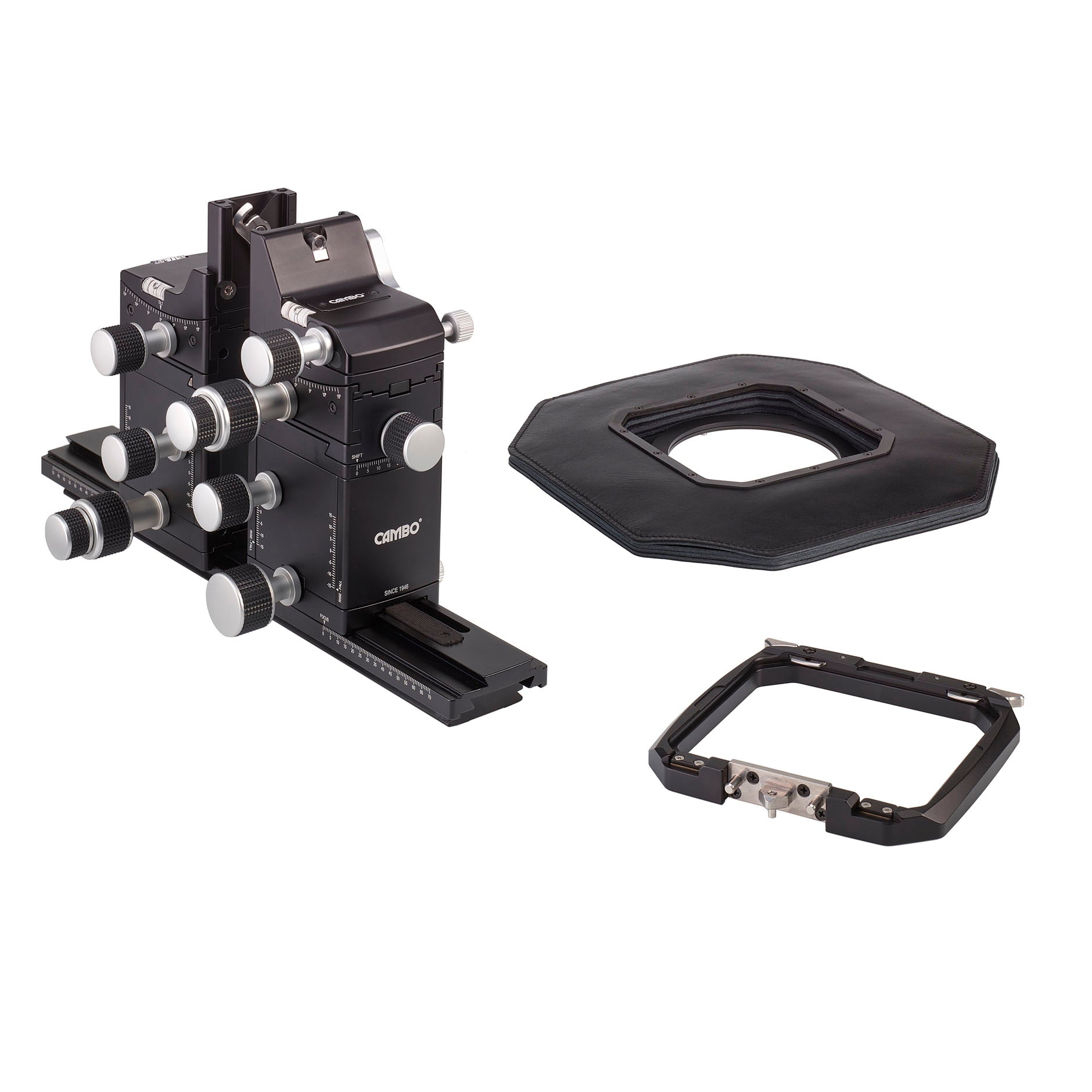

Actus-MV Kit for Digital Backs



The Actus-MV base completed with the universal interface adapter ACDB-989 and bellows ACDB-254. ACDB-989 accepts every Cambo SLW digital back adapter, which enables the adaptation of current and legacy digital backs. For use with Phase One IQ and Hasselblad CFV backs we recommend the ACMV-IQ and ACMV-HV kit.


Product details

Content of the Kit

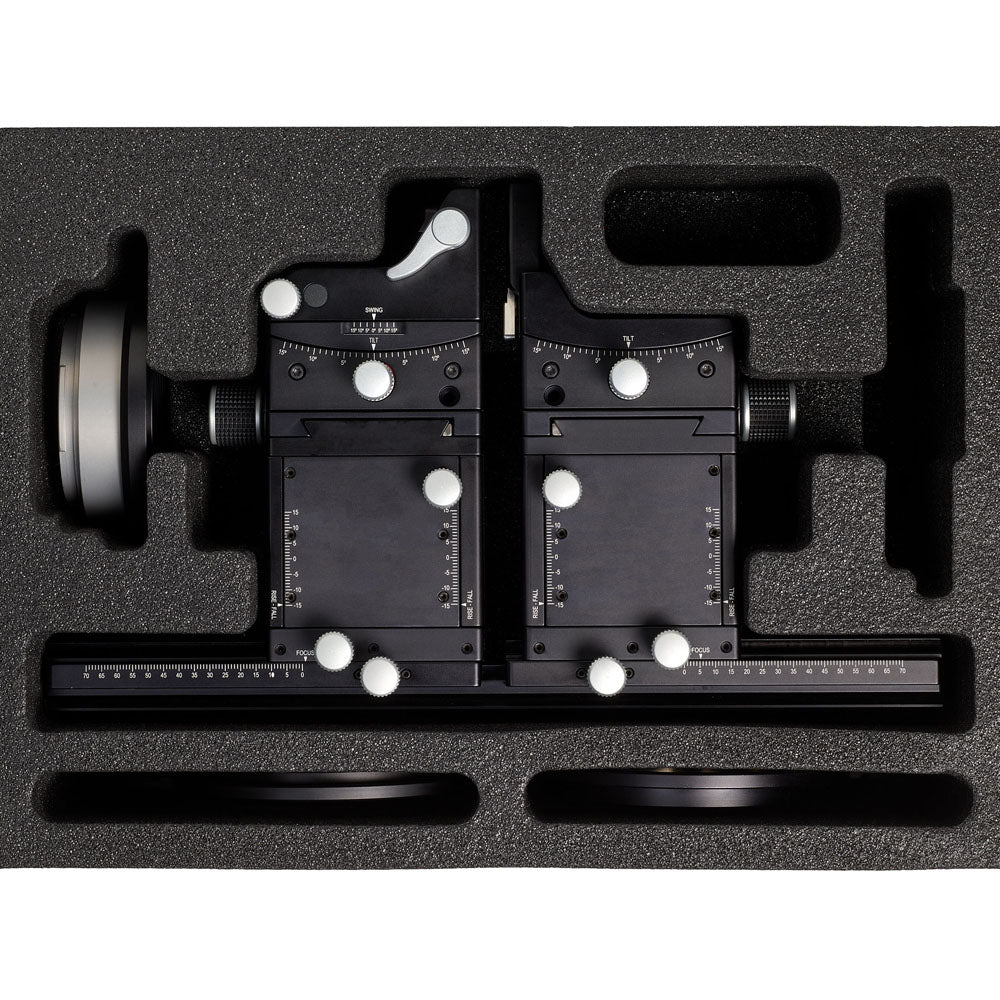

  • Actus MV Base
  • AC-254, Actus-DB Long Extension bellows (300mm extension)
  • ACDB-989, Actus-G Interchangeable SLW Adapter Holder



Compatible SLW Adapters

A SLW adapter should be added to work with the digital back of your choice

Adapters that are compatible with the ACDB-989 are:

  • SLW-80 for backs with a Hasselblad-V interface
  • SLW-81 for backs with a Leaf Afi/SinarHY6 interface
  • SLW-83 for backs with a PhaseOne IQ interface
  • SLW-87 for backs with a Contax-645  interface
  • SLW-89 for backs with a Hasselblad-H interface



Lenses and Lensplates

Cambo provides its own assortment of Lenses that are compatible wit the Cambo-Actus systems. Furthermore, lensplates to mount third party lenses are available in a wide variety.



Technical details

Tilt front and rear 15º / 15º
Swing (front) 30º / 30º
Rise/Fall (front and rear) 15mm/15mm
Side Shift (front and rear) 20mm/20mm
Weight 2,8 kg
Max. extension (standard rail and bellows) 298mm (2x 70mm geared / 158mm telescopic)
Dimensions LxWxH 20 x 12 x 28cm (w/o rail and with DB frame)

Please note: Max. extension is measured from lens mount to bayonet mount.
