Actus-MV View Camera for XF/M645 - Rotating Back
Regular price
$5,999.00
Couldn't load pickup availability
ACMV-IQ
Actus-MV Kit for Phase One IQ Digital Backs

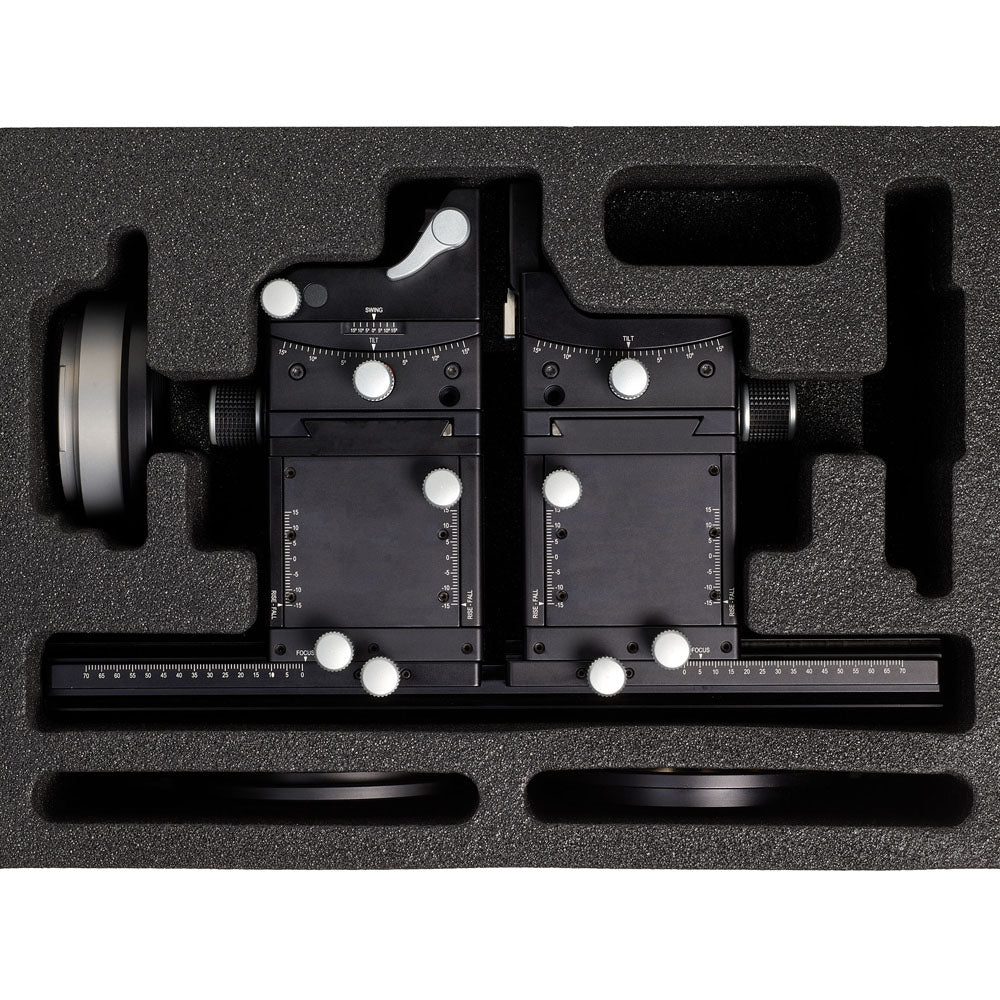

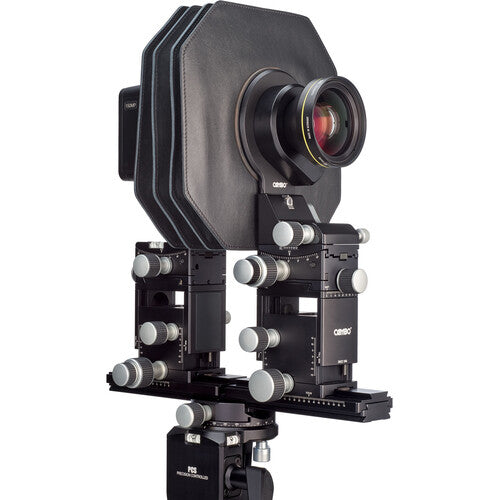

The Actus-MV base completed with ACDB-990 digital back adapter and ACDB-254 bellows. The set-up for use with the Phase One/Mamiya interface. Adapter ACDB-990 has an integrated rotation from landscape to portrait orientation.
Product details
| Content of the Kit |
|
Lenses and Lensplates
Lenses are optional and not part of this kit. Cambo provides its own assortment of Lenses that are compatible with the Cambo-Actus systems. Furthermore, lensplates to mount third party lenses are available in a wide variety.
Technical details
| Tilt front and rear | 15º / 15º |
| Swing (front) | 30º / 30º |
| Rise/Fall (front and rear) | 15mm/15mm |
| Side Shift (front and rear) | 20mm/20mm |
| Weight | 2,8 kg |
| Max. extension (standard rail and bellows) | 298mm (2x 70mm geared / 158mm telescopic) |
| Dimensions LxWxH | 20 x 12 x 28cm (w/o rail and with DB frame) |
Please note:
- Max. extension is measured from lens mount to bayonet mount.
- The distance from Bayonet to Sensor is different for each camera model series and can be added to the max. extension
Recommendation
A view camera deserves a stable foundation. Please have a look at our range of Studio Stands. The best investment to your studio ever!
