Wide RS 70 mm HR Digaron-W Lenspanel
Regular price
$7,179.00
Couldn't load pickup availability
NO RETURNS

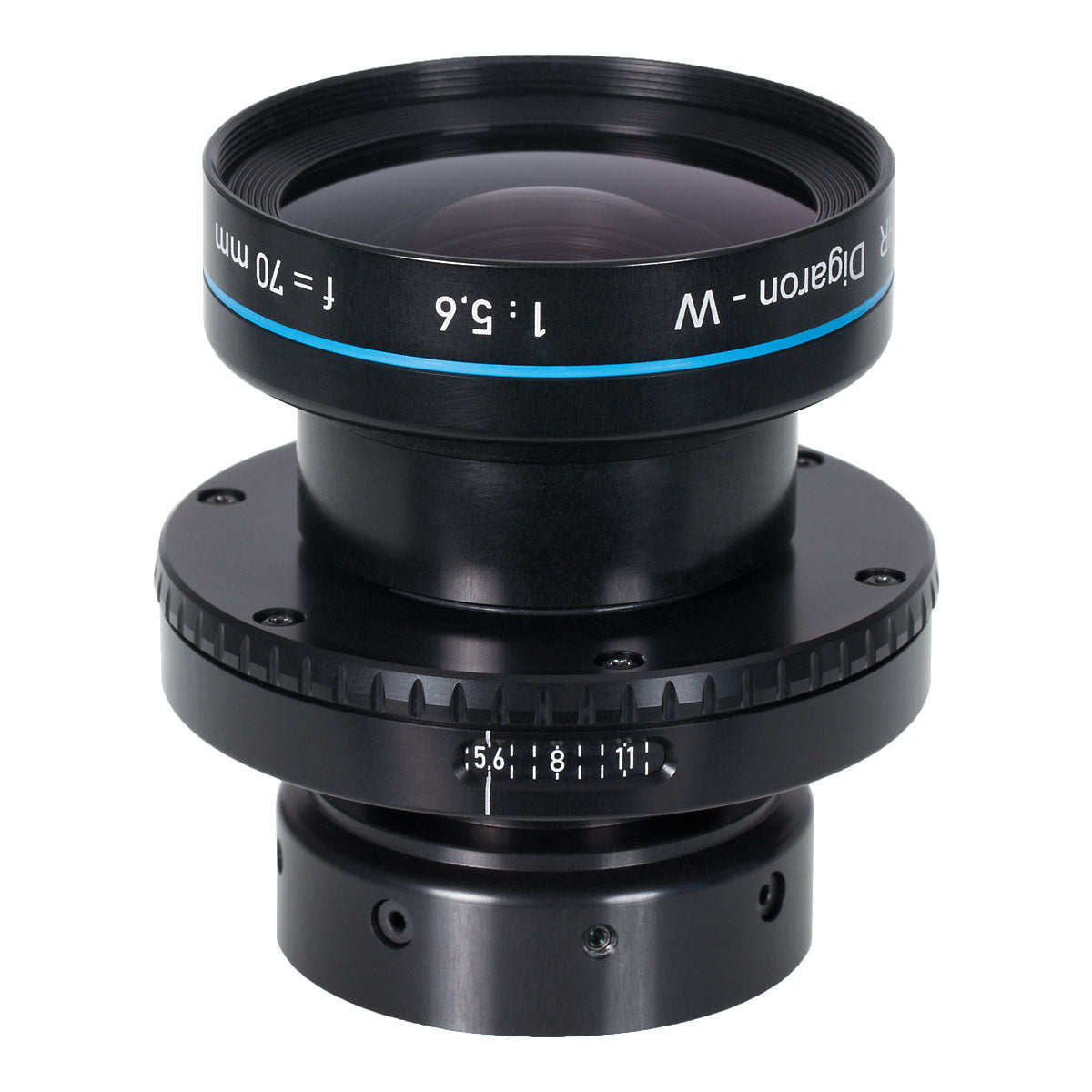

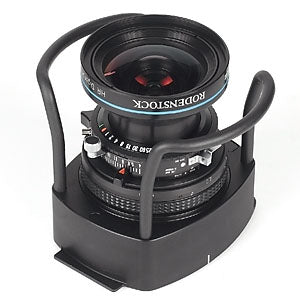

The WRA-2070 Lenspanel is dedicated to the use with Digital Backs with sensor activated electronic shutter and has a Rodenstock 5.6/70 HR Digaron-W lens with Aperture Only mounted in a helical focussing mount.
Product details
| Shortest focus distance to object | 0,9 mtr |
|---|---|
| Image circle of lens at f/11 | 100mm |
This product is compatible with the PhaseOne XT system / No data transfer
Optical Movements
| CCD size | Movements |
|---|---|
| 37x37mm | 28/28mm |
| 33x44mm | 28/25mm |
| 36x48mm | 26/23mm |
| 37x49mm | 25/22mm |
| 40x54mm | 22/19mm |
| 36x56mm | 23/19mm |
Camera Movements
| Camera | Movements Up / Down / Left / Right |
|---|---|
| WDS | 34 / 26 / 20 / 20mm |
| WRS | 25 / 15 / 20 / 20mm |
| 1600 | 20 / 20 / 20 / 20mm |
This 70HR Digaron-W is also available on a Tilt/Swing Lenspanel version, see WTSA-870
