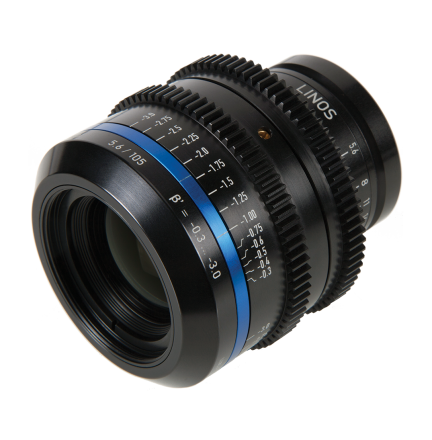

Linos inspec.x L 105 mm float f/5.6 (Requires WHF-4 or ACB-V Lensplate)

The inspec.x L float lenses combine the field-proven imaging performance of the inspec.x L Series with newly developed mechanics to cover a large magnification range with only one lens. By using floating element optics, the inspec.x float lenses achieve high performance over an extremely wide magnification range from 0.3x to 3.0x.

Full-metal housing makes the lens suitable for industrial use and geared rings facilitate the use in automated environments.

• Ideal for 12k and 16k sensors
• Geared rings for magnification and aperture
• Large image circle up to 82 mm
• Focal lengths: 105 mm
• Extreme magnification range of -0.3x … -3x
• Floating element optics
• Perfect match with 5 µm pixel size
• Working distance: 100-420 mm
• Spectral range: 400-750 nm
• Distortion: < 0.4%
