WRC-400
Cambo's smallest technical camera. For photographers who want to travel light, but don't want to do without camera shift. The WRC-400 offers Rise/Fall or Shift, by choice of camera orientation. Movements are driven by accelerated spindle gears for precise adjustments. The body is machined out of high grade aluminium and built to last.
- Includes Cable release and Arca Base Plate
- Single Rear Shift (20/20 mm), 6 Spirit Levels
Product details
- Small size 120 x 145mm (W x H) excl. handgrips and tripod mount
- Lightweight. Only 0.5 kgs (excl. lens, excl.handgrip, excl. tripod mount)
- Horizontal shift 40 mm (20 mm left/20 mm right)
- or Vertical shift 40 mm (20 mm left/20 mm right)
- Stitching possibilities (2-way)
- Milimeter scales for movements
- Compatible with WDS and Wide RS
- Removable cable release included
- Arca compatible tripod base plate (3/8" and 1/4" threads included)
- 6 spirit levels visible from top or bottom
- 4 mounting points for 2-point fixation accessory mounts
Options
- Option for wooden handgrips

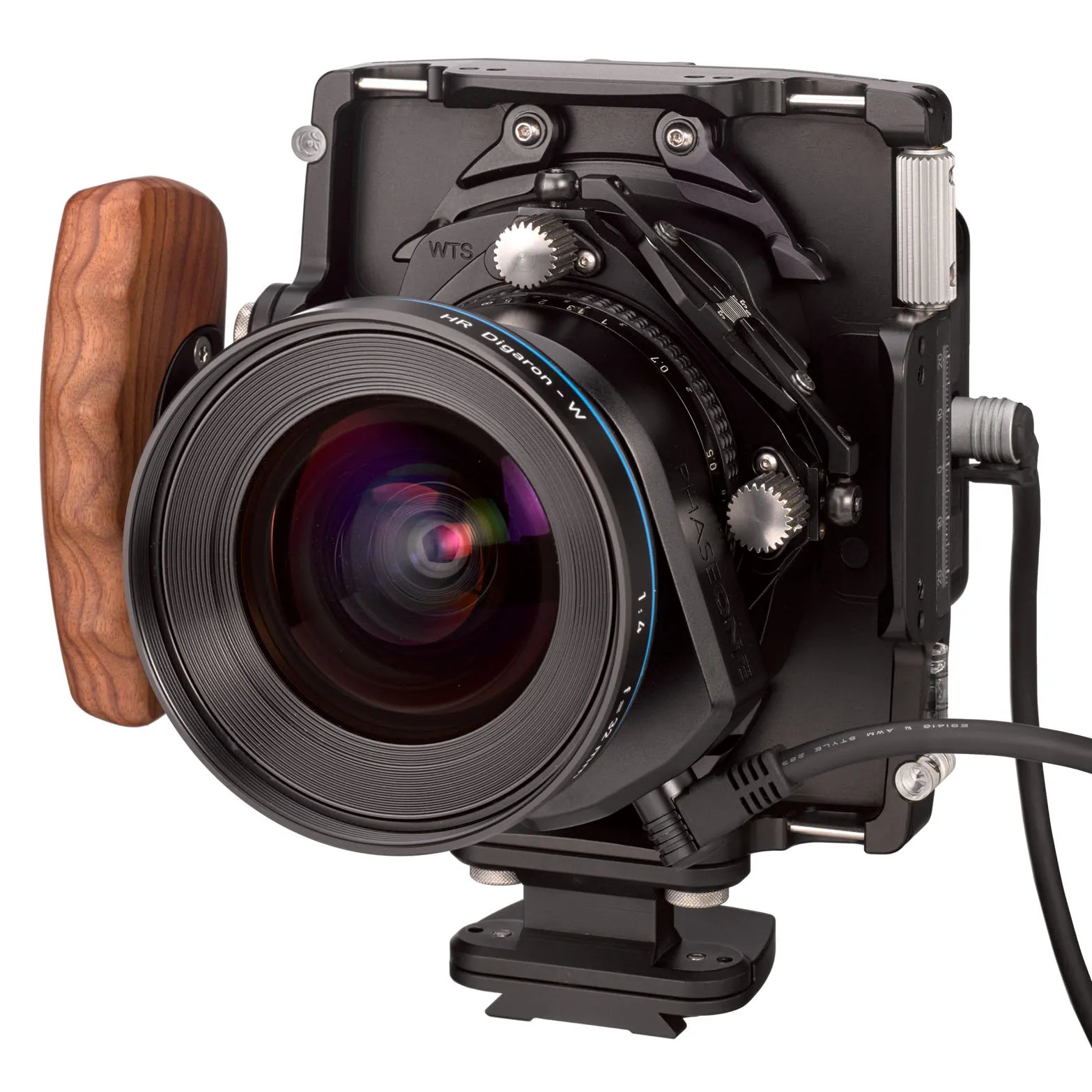

- Optional WTS Tilt-Swing Lenspanels
- Broad range of optics, including Phase One X-Shutter lenses
- Retrofitting of legacy lenses offered
Interfaces and Lenspanels
Adapters
Like the other Cambo Wide models, the WRC-400 features an interchangeable interface for digital backs. Mounts are available for Hasselblad-V, Hasselblad-H, PhaseOne/Mamiya, Contax 645AF, Sinar 30/45 and Leaf AFi/Sinar HY6.
Lenspanels
New Rodenstock Digaron lenses are available in Aperture Mount or X-Shutter. Cambo offers a retroffiting service for many legacy Schneider and Rodenstock lenses. This gives access to an extensive range of focal lengths, reaching from 19 to 180mm and beyond on request.
Technical details
| Size | 120x145mm (WxH) excl. handgrips and tripod mount |
|---|---|
| Weight | 0,5 Kg (excl. lens, handgrip and tripod mount) |
| Horizontal Shift or Vertical Shift | 40 mm (20mm / 20mm) |
| Tripod Mount | 3/8'' tripod mount (25mm) including Arca compatible base plate |
